The new edge artificial intelligence recognition application platform based on the lens can effectively detect various road conditions behind and form a complete solution based on different conditions.

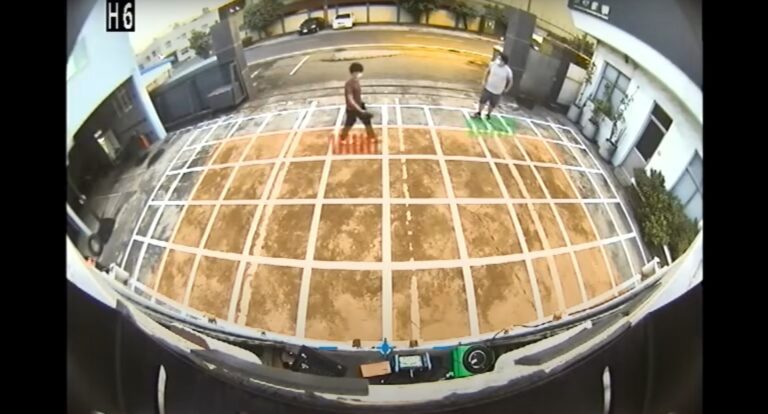

AI RVS rear view system application equipped with pedestrian detection and road detection functions
AI RVS rear view system application equipped with pedestrian detection and road detection functions
| MCU BOX system specifications | |
|---|---|
Model | AI RVS |
Operating Voltage | DC 10~36V |
Power consumption | < 15W |
working conditions | 30~80% relative humidity/ -40℃~75℃ |
Storage conditions | 30~80% relative humidity/ -40℃~75℃ |
I/O interface | Indicator LED/Button/Buzzer/GPS/ACC/GND/Right Turn Indicator/Left Turn Indicator/Vehicle Speed/Trigger |
warning message | Audible warning (buzzer)/indicator LED |
| Camera specifications | |
|---|---|
Sensor format | CMOS |
Operating Voltage | DC 9~36V |
Working current | ~200mA@DC 12V |
Photosensitive element resolution | 1280x960 (720P) |
minimum illumination | 0.1lux |
signal-to-noise ratio | 42dB@12lux |
HDR | >100dB |
Image format | CVBS (1.0Vp-p/With 75Ω load) / AHD / TVI (can be selected by engineering mode) |
Sensing viewing angle | 180° |
Image output angle | H(horizontal):170° / V(vertical):125° |
waterproof level | IP69K |
Lens elements | 6G+IR |
I/O | RS485 |
spectrum | Dual band T50% 650/850nm |
working conditions | 30~80% relative humidity/ -40℃~85℃ |
Storage conditions | 30~80% relative humidity/-40℃~105℃ |
| Other component specifications | |
|---|---|
buzzer | 10cm/10Vp-p,square wave,4.1KHz. |
